Agfa Karat 6.3 - 3.5

The Agfa Karat 6.3 to 3.5 were a range of small strutfolding cameras with a very distinctive design that used the Karat cassette system. The model numbers stood for the maximum aperture of the lens. Although it is tempting to think that the Karat 6.3 was first, followed by the 4.5 and then the 3.5, this was actually not the case. The Karat 6.3 Art Deco certainly was the first Karat, but the next model was the Karat 3.5 was next. The 4.5 and 6.3 were introduced soon after and were in production simultaneously with the Karat 3.5. All versions received small updates during their production. After WWII only the Karat 3.5 was still produced for some time. The models and their variants are presented here roughly in chronological order.

Agfa Karat 6.3 Art Deco

This was the first Agfa Karat, a small viewfinder camera with a distinctive, rounded oval body. It was first introduced in 1936. Distinguishing features were the completely black body and the intricate design of the lens base. About 40,000 cameras were produced from 1936 to 1938. It featured a 50mm f/6.3 Agfa Anastigmat Igestar lens and a self-cocking Kodak shutter which was set while pressing the shutter release. Three main variants of the Art Deco model exist. The first had strap lugs integrated in the top housing, which was made of a hard plastic called Trolitan, a variant of bakelite. A second version had strap lugs that were screwed in a black enamalled aluminium top housing. A later third version also had screwed strap lugs and had a higher viewfinder. In addition it missed the little gap in front of the viewfinder of the earlier versions and had a larger back release catch.

Agfa Karat 6.3 Art Deco photo

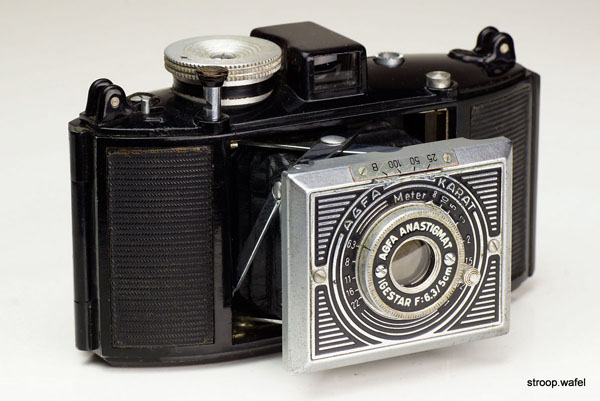

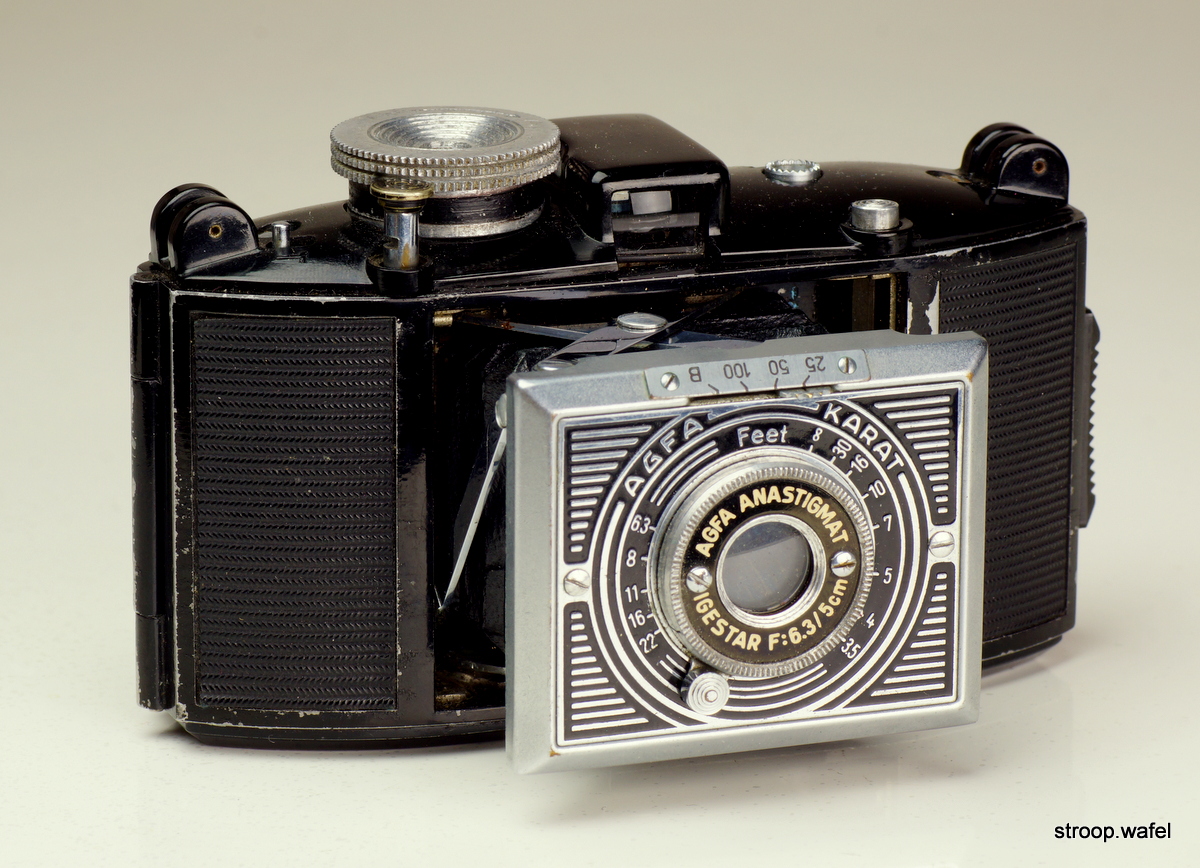

An early Karat 6.3 Art Deco with strap lugs integrated in the top housing, which was made of hard plastic.

Agfa Karat 6.3 Art Deco photo

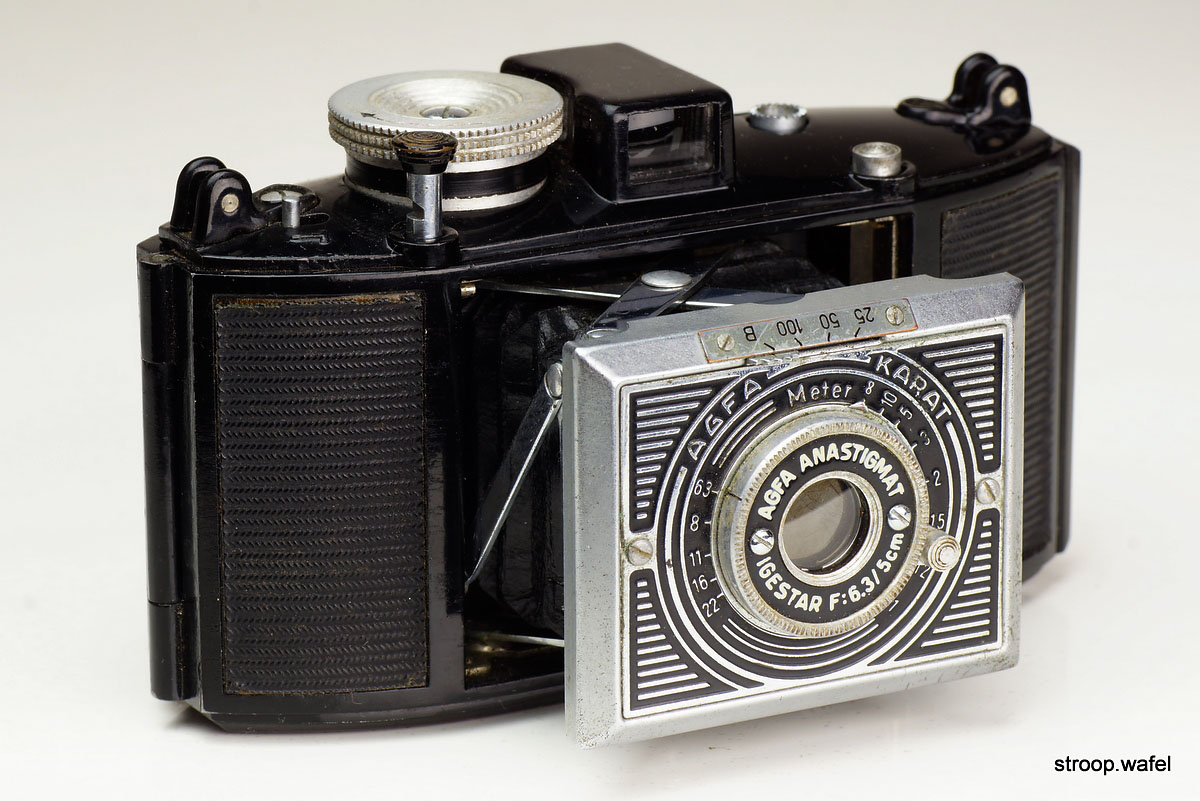

An early Karat 6.3 Art Deco with Karat cassette and film. This one has screwed strap lugs.

Agfa Karat 6.3 Art Deco photo

A late Karat 6.3 Art Deco with the higher viewfinder also found on other Karat models.

Agfa Karat 6.3 Art Deco wind mechanism photo

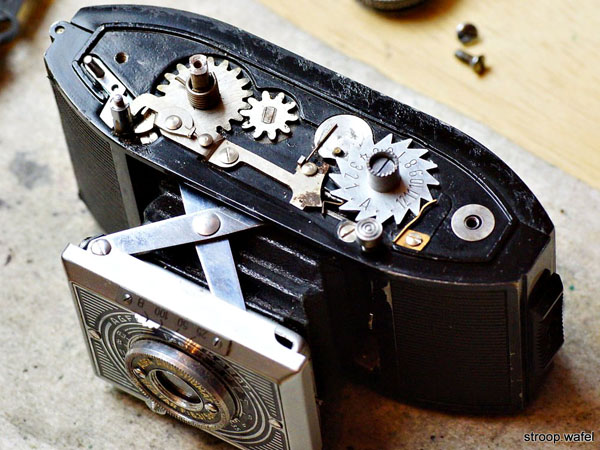

A Karat 6.3 Art Deco with the top housing removed to expose the wind mechanism. Turning the wind knob would advance the film until the wind lock was activated, at which time the frame counter was forwarded and the double exposure lock was reset. Pushing the shutter release button would reset the wind lock mechanism and activate the double exposure lock.

Agfa Karat 6.3 Art Deco French photo

French import version of the Karat 6.3 Art Deco, the only difference with the first model above being the small label 'Import� d'Allemagne' beneath the shutter.

Pre-war Agfa Karat 3.5 v.1

The Karat 3.5 was produced before and after WWII and they are often divided in pre-war and post-war models. The main distinguishing feature between pre-war and post-war Karat 3.5 was the lens: all pre-war Karat 3.5 had a Solinar f/3.5 lens, whereas all post-war Karat 3.5 had a Apotar f/3.5 lens. Various sources on the internet state that pre-war Karat 3.5 had strap lugs and post-war did not. However, a pre-war version without strap lugs also existed (see v.2 below).
The first version of the Karat 3.5 was introduced soon after the 6.3 Art Deco in 1937. It featured a Compur or Compur-Rapid shutter and had a brushed aluminium top housing with strap lugs. It had a T button with the letter T embossed on the top housing. As mentioned, the lens was a Solinar f/3.5, an excellent four-element lens.

Pre-war Agfa Karat 3.5 photo

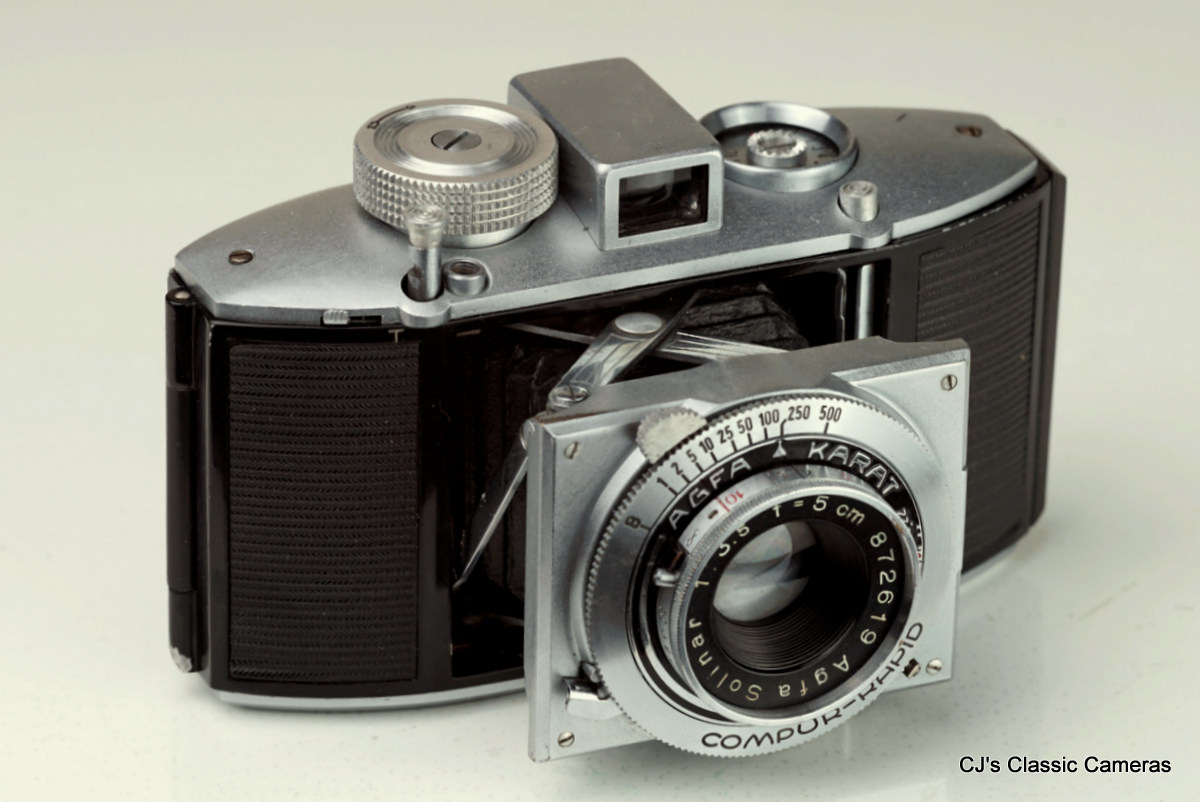

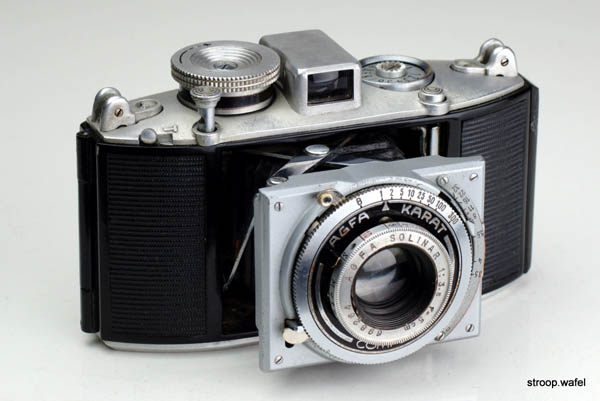

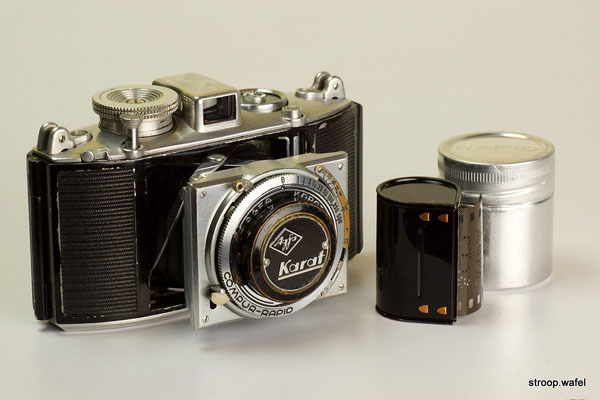

First version of the pre-war Karat 3.5 with strap lugs and Solinar 50mm f/3.5 lens in Compur-Rapid shutter, here pictured with an original Agfa lens cap.

Pre-war Agfa Karat 3.5 photo

Same model but here with Compur shutter.

Pre-war Agfa Karat 3.5 photo

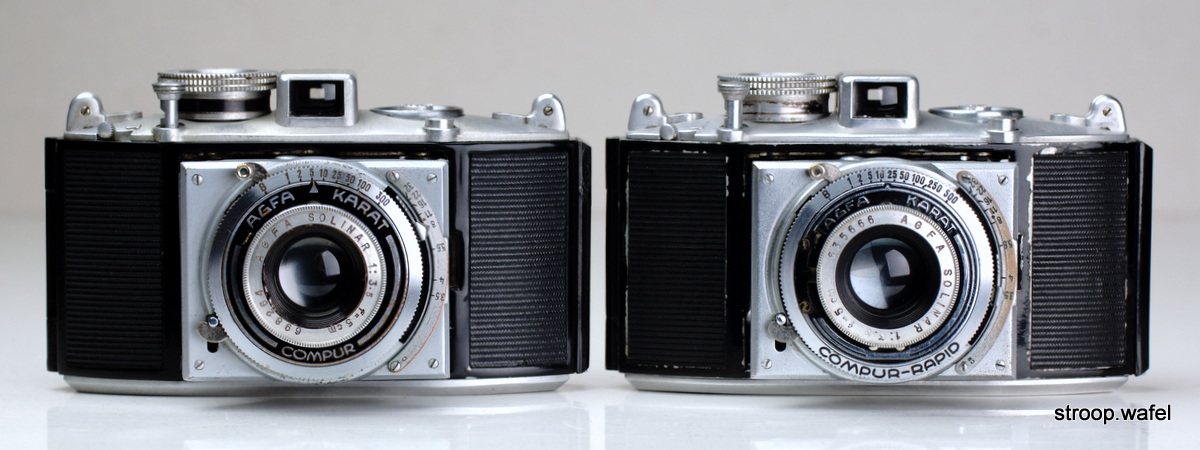

Comparison of Compur and Compur-Rapid version side by side. Not only was the speed ring different, but also the shutter plate itself, which is rather unusual, on most cameras that were available with both shutters it was one or the other. A very careful observer may even notice that the aperture scales were different on both models, that is, the one on the Compur model has a small 'C' mark, whereas the one on the Compur-Rapid model has a small 'CR' mark. Despite what one would perhaps expect, there appears to be no difference in the aperture scale itself.

Agfa Karat 4.5 v.1

The Karat 4.5 was a simplified version of the Karat 3.5 with a slower Oppar f/4.5 lens and a Pronto-style shutter with a limited speed range. The first version had strap lugs and was introduced in 1938. It had a small stripe as distance indicator on the shutter housing. This was the last Karat model to be produced that had the original style wind knob, with indented top, three ridges and a black painted ribbon around its base.
One peculiar feature was the protruding screw used to secure the strap lug next to the wind knob. It appears this was the only Karat model that had this particular screw. Even though it seems perceivable that it may have served some sort of function, it appears too small to hold any accessories.

Agfa Karat 4.5 photo

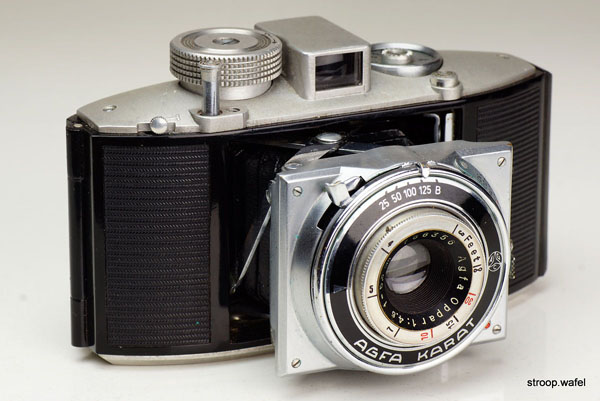

First version of the Karat 4.5 with strap lugs. Note the peculiar screw to secure the strap lug next to the wind knob.

Agfa Karat 6.3

The Karat 6.3 was basically the same model as the Art Deco but without the decorated lens base. It had a slightly longer 55mm f/6.3 Agfa Anastigmat Igestar lens and had no strap lugs. The T button was the same as on the Karat 3.5. Early production had a small stripe as distance indicator on the shutter housing, like the first version of the Karat 4.5. Later production had a small arrow instead. It was the first Karat to feature the new wind knob with a flat top and 4 ridges.

Agfa Karat 6.3 photo

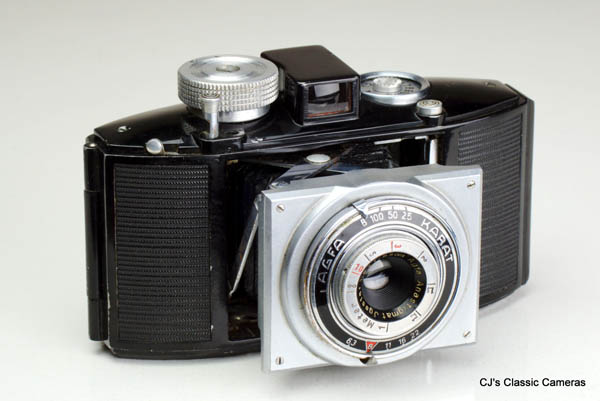

An early Karat 6.3 with a small stripe as distance indicator on the shutter plate.

Agfa Karat 6.3 photo

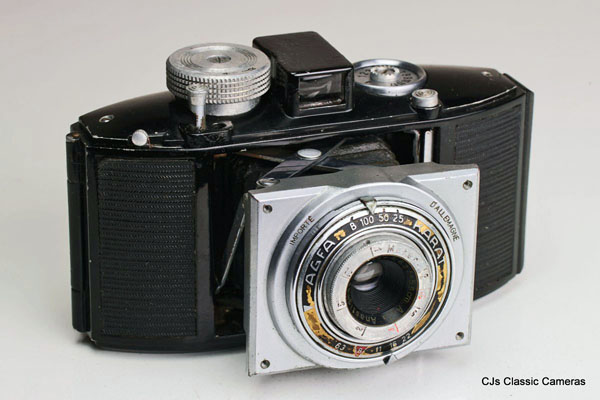

A somewhat worn later Karat 6.3 with an arrow as distance indicator. Another interesting feature are the 'Importé d'Allemagne' markings around the shutter, indicating this example was produced for the French market.

Pre-war Agfa Karat 3.5 v.2

The second version of the pre-war Karat 3.5 was introduced in 1939, around the same time as the Karat 6.3. There were several changes compared to the first version. First of all it no longer had strap. The T button had a different shape and the letter T was now on the black body frame instead of the top housing. The lens was black with white letters and a metal ring instead of silver with black letters. This version were the last Karats to be built before camera production was stopped in 1941 due to WWII.

Pre-war Agfa Karat 3.5 photo

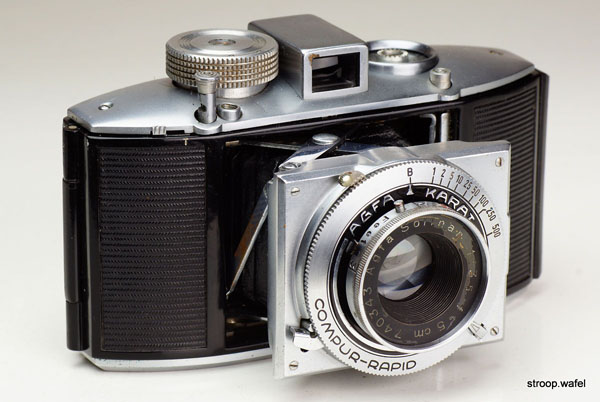

Second version of the pre-war Karat 3.5 without strap lugs.

Pre-war Agfa Karat 3.5 photo Pre-war Agfa Karat 3.5 photo

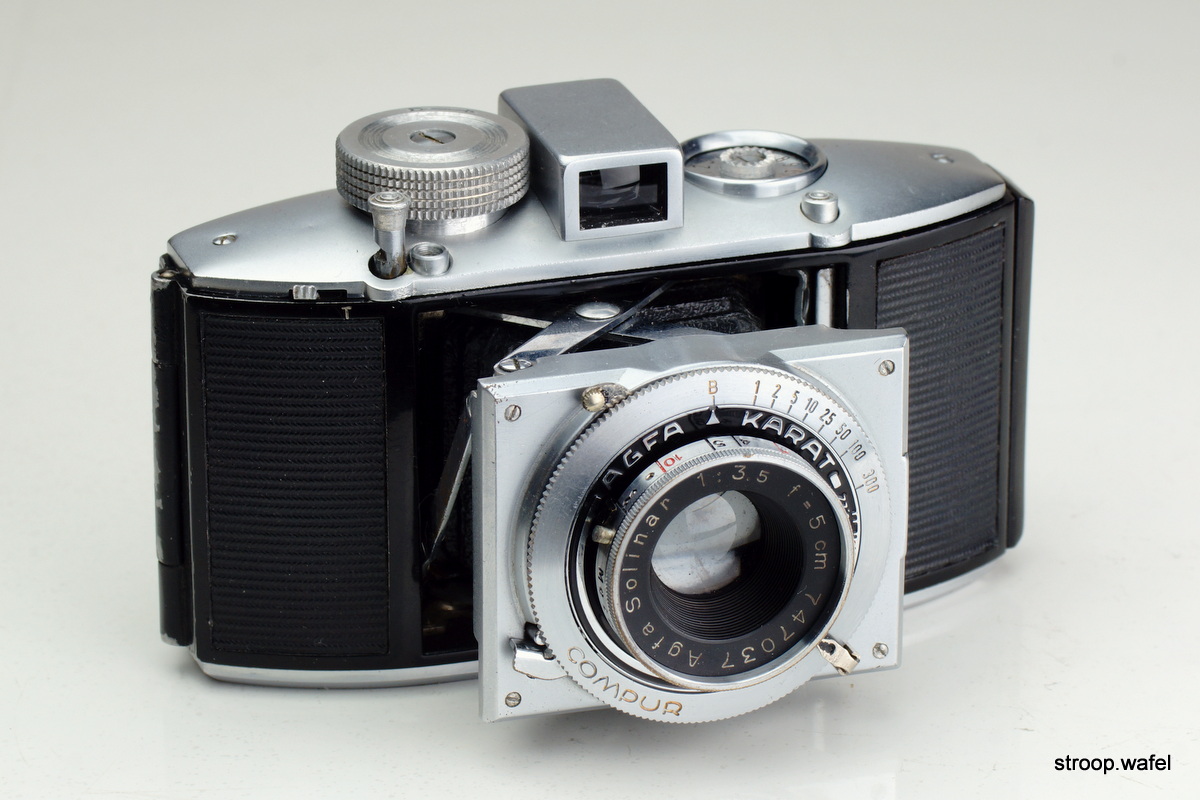

(left) Same model but here with Compur shutter. (right) Later production with a flat cocking lever, as also found on the Karat 2.8, which was introduced around the same time (shortly before WWII).

Pre-war Agfa Karat 3.5 photo

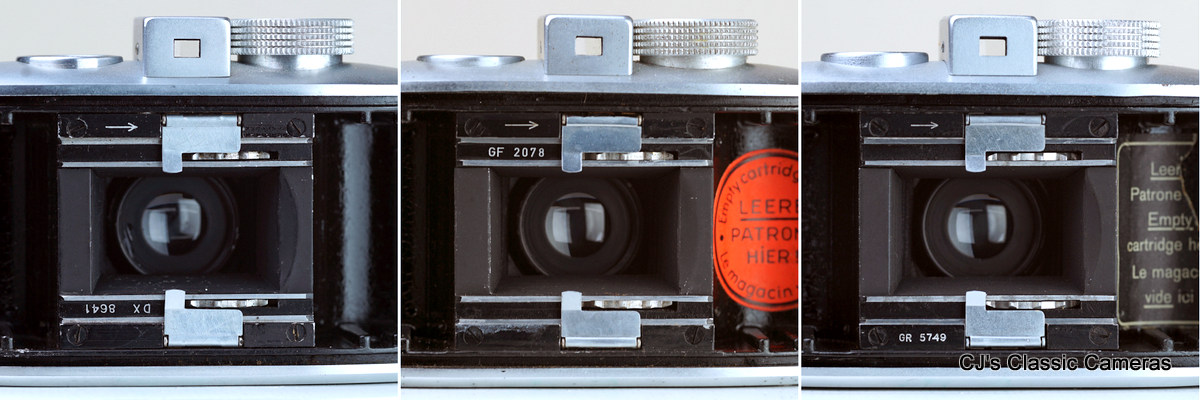

For unknown reason Agfa made changes to the position of the camera serial# inside the film chamber. Initially (starting with the Karat 6.3 Art Deco) this number was upside down next to the lower sprocket wheel. Then for a short while (about 12,000 Karats in total, about a third of those Karat 4.5, the rest Karat 3.5 v2) it was printed the right way up next to the upper sprocket wheel. Then for the last 4,000 or so of Karat 3.5 v2 production the serial was printed at the bottom of the film chamber. This configuration continued with the later post-war models.

Agfa Karat 4.5 v.2

The second version of the Karat 4.5 also lost the straps lugs of the first version. Other differences were the new style wind knob and and an arrow as distance indicator on the shutter instead of a stripe. It still had the same top housing as the first version, with the original style T button, and thus differed from the Karat 3.5 version in production at the same time.

Agfa Karat 4.5 photo

The second version of the Karat 4.5 with an Agfa Oppar 55mm f/4.5 lens and without strap lugs.

Post-war Agfa Karat 3.5

The post-war Karat 3.5 was quite similar to the second, pre-war version but featured a different lens and shutter. The lens was an Apotar, a three-element lens as opposed to the four-element Solinar. The shutter was a Prontor marked as Agfa Karat, the shutter plate also had shutter speed and aperture markings. Early production still had uncoated lenses, but soon all lenses were coated.
A version with a standard Prontor-S lens as found on many other contemporary cameras was also produced. Based on the high lens serial numbers these were probably the last of Karat 3.5 to be built.

Post-war Agfa Karat 3.5 photo

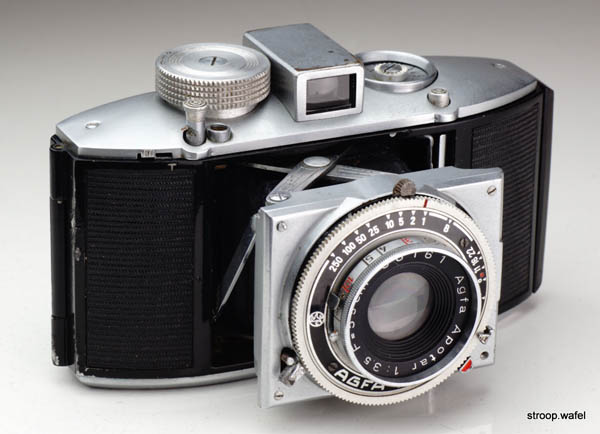

A postwar Karat 3.5 with uncoated Agfa Apotar 55mm f/3.5 lens.

Post-war Agfa Karat 3.5 photo

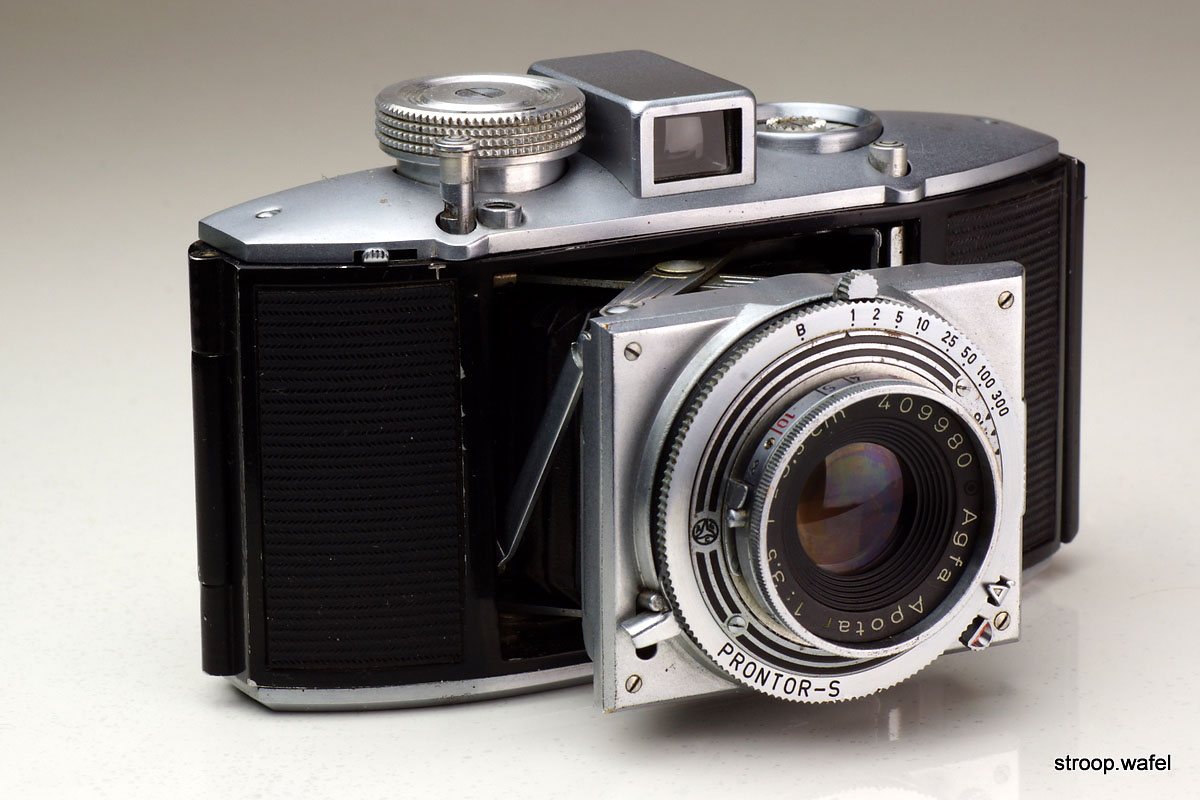

Another postwar Karat 3.5 with coated Apotar lens, this time a fairly rare and late version with Prontor-S shutter.

Serial nrs. and production estimates

The first batch of the first Agfa Karats (the 63 Art Deco) has a serial number consisting of one letter followed by four numbers. The letter started at Z and counted down to A (skipping the I, which in German looked the same as the J), changing every 1000 cameras. The numbers started at 2001 and counted up to 9000, where they jumped to 2000 again. So the first Karat had serial number Z 2001 and after reaching T 9000 following the rules explained above, it would jump to S 2001. This continued until reaching A 6000 after 25,000 cameras.
From then on the system changed: the serial had two letters, starting at BA and counting up on letter every 1000 cameras, with the second letter going from A to Z after which the first letter would go up by one. Like before, the numbers would start at 2001 but did now go up to 10000, and again the letter I was skipped. So this system started at BA 2001, would reach BH 10000, continue with BJ 2001 up until BZ 7900, then continue with CA 8001 up to CA 9000, then jump to CB 2001 (note, this was an exception, nearly all cycles went up to 10000, only CA and HL jump from 9000 to 2001), etc, etc.
In addition, quite frequently a letter T can be found at the end of the serial nr. Apparently this means a model meant for used in the tropics, but they are identical to camera lacking a T at the end of the serial nr. Probably different lubricants were used.
The range of serial nrs. for different models shows that they were made in large batches, but alternated. See table below for an estimate of serial nr. ranges for the various model in order of production. Total production of Karat 6.3-3.5 was close to 200,000.

Karat model Serial nr. range Production
Karat 6.3 AD Z 2001 BL 5000 36,000
Karat 3.5 v1a BM 2001 CA 9000 15,000
Karat 6.3 AD v2 CB 2001 CF 7000 5,000
Karat 3.5 v1a CG 7001 CV 6000 15,000
Karat 4.5 v1 CW 6001 DF 8000 10,000
Karat 6.3 DG 8001 DQ 10000 10,000
Karat 3.5 v1b DR 2001 EF 9000 15,000
Karat 4.5 v2 EG 9001 EQ 3000 10,000
Karat 6.3 ER 3001 FA 5000 10,000
Karat 4.5 v2 FB 5001 FL 7000 10,000
Karat 6.3 FM 7001 FV 9000 10,000
Karat 3.5 v1b FW 9001 FY 4000 3,000
Karat 4.5 v2 FZ 4001 GD 8500 4,500
Karat 3.5 v1b GD 8501 GT 7500 15,000
Karat 3.5 v2a GT 7501 HL 9000 17,500
Karat 3.5 v2b HM 2001 HV 4000 10,000
Total production 196,000

Serial nrs. of lenses were only indicated on Solinar and Oppar lenses on the Karat 3.5 and 4.5, respectively. The serial nrs. of these two lenses cover a similar range but never overlap, and correlate with body serial nrs. However, lens serial nrs. increase about twice as fast as body nrs. This suggests that about half the lenses that Agfa made were mounted on Karats, which then presumably made up half their camera production. This assumes that even though the lens on the Karat 6.3 models had no number engraved, they did count towards the Agfa lens numbering system.

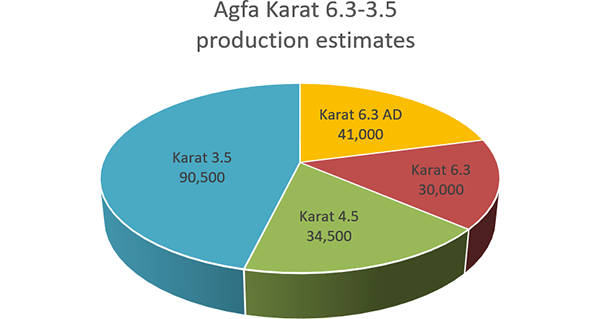

Agfa Karat production number pie chart
